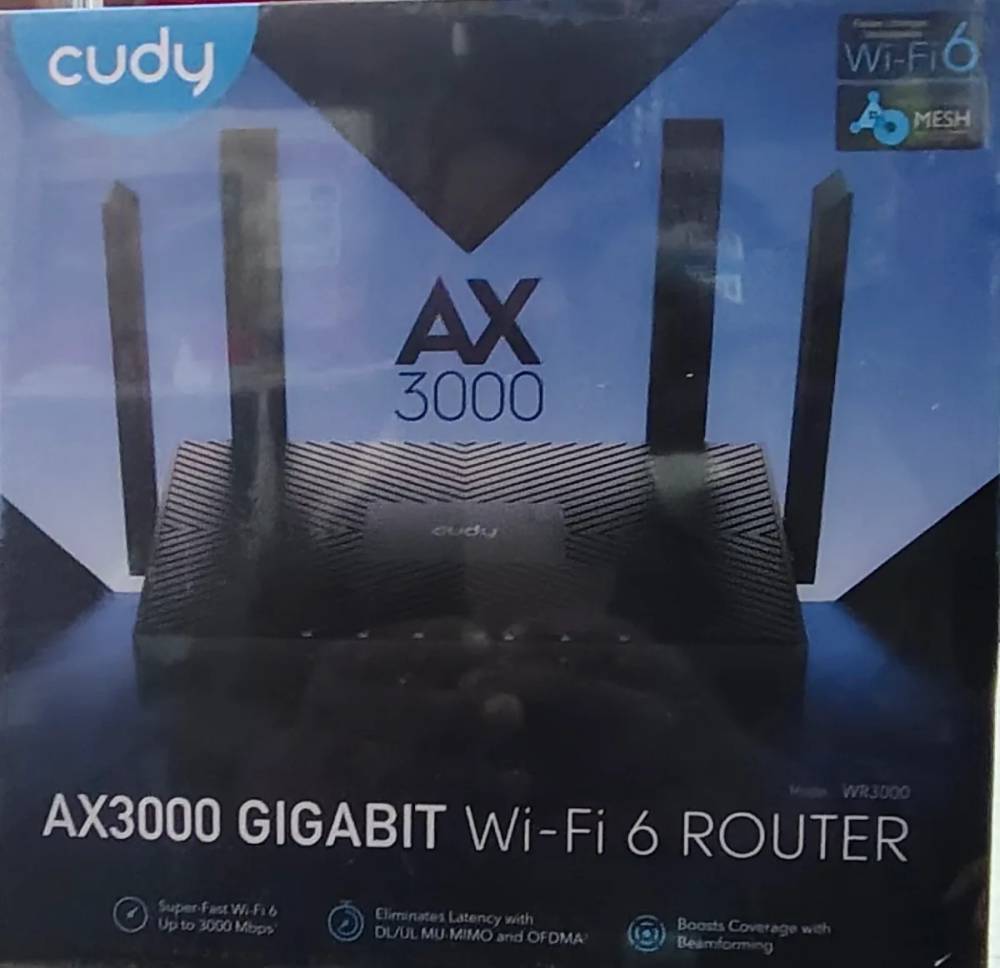

Cudy AX3000 Router

Model Version WR3000 1.0
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams with 3T3R
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA 5 GHz: 3× Internal, 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 200 m (656 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces Gigabit RJ45 Ports 4
Ethernet Notes 1× WAN port, the rest are LAN ports
LED System, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
Physical Buttons WPS Button, Reset Button
Power Power Input Type DC Jack
Power Methods DC
Power Input 12V⎓1A
Max Power Consumption (W) 11.5w
Idle Power Consumption (W) 4.2w
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Reliability Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
Desktop
Wall-mount
Dimension Main Part:
183.3×109×35 mm
7.22×4.29×1.38 inches
Product Weight
BR: 295 g (10.41 oz.)
ZH: 295.8 g (10.43 oz.)
Package Content
WR3000
Power Adapter
Ethernet Cable
Installation Guide
Ordering Information Retail Package Weight
BR: 589 g (20.78 oz.)
EU: 614 g (21.66 oz.)
UK: 626 g (22.08 oz.)
US: 615 g (21.69 oz.)
ZH: 589.2 g (20.78 oz.)
Retail Package Dimension 240×230×60 mm
9.45×9.06×2.36 inches
Units per Carton 20
Carton Dimension 49.5×32.5×48 cm
19.49×12.8×18.9 inches
Carton Gross Weight
BR: 12.9 kg (28.44 lbs)
EU: 13.5 kg (29.76 lbs)
UK: 13.6 kg (29.98 lbs)
US: 13.1 kg (28.88 lbs)
ZH: 12.8 kg (28.22 lbs)
Carton Net Weight
BR: 11.8 kg (26.01 lbs)
EU: 12.3 kg (27.12 lbs)
UK: 12.5 kg (27.56 lbs)
US: 12.3 kg (27.12 lbs)
ZH: 11.8 kg (26.01 lbs)
