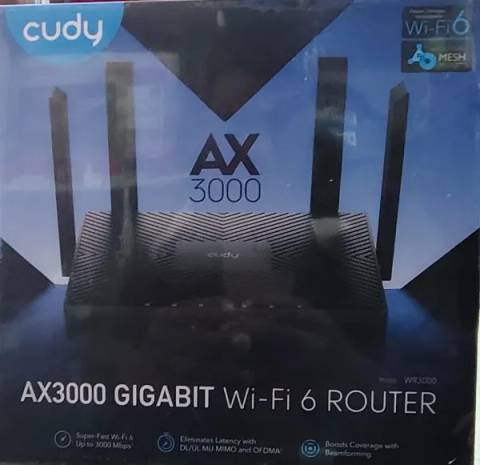

Cudy AX3000 Router
Model Version WR3000 1.0 CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53 Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR DDR/RAM 256 MB (2 Gbit) DDR3 Wireless 5 GHz Wi-Fi Speed 2402 Mbps 2.4 GHz Wi-Fi Speed 574 Mbps 5 GHz Wi-Fi Streams 2 Spatial Streams with 3T3R 2.4 GHz Wi-Fi Streams 2 Spatial Streams Wi-Fi Antennas 4× Fixed FEM or PA/LNA 5 GHz: 3× Internal, 2.4 GHz: 2× Internal Beamforming Range Performance Max: 200 m (656 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. Wall Performance Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') Interfaces Gigabit RJ45 Ports 4 Ethernet Notes 1× WAN port, the rest are LAN ports LED System, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi Physical Buttons WPS Button, Reset Button Power Power Input Type DC Jack Power Methods DC Power Input 12V⎓1A Max Power Consumption (W) 11.5w Idle Power Consumption (W) 4.2w Power Adapter In the Box Input: 100-240V~, 50/60Hz Output: 12V⎓1A Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing Certifications FCC, CE Mechanical Installation Desktop Wall-mount Dimension Main Part: 183.3×109×35 mm 7.22×4.29×1.38 inches Product Weight BR: 295 g (10.41 oz.) ZH: 295.8 g (10.43 oz.) Package Content WR3000 Power Adapter Ethernet Cable Installation Guide Ordering Information Retail Package Weight BR: 589 g (20.78 oz.) EU: 614 g (21.66 oz.) UK: 626 g (22.08 oz.) US: 615 g (21.69 oz.) ZH: 589.2 g (20.78 oz.) Retail Package Dimension 240×230×60 mm 9.45×9.06×2.36 inches Units per Carton 20 Carton Dimension 49.5×32.5×48 cm 19.49×12.8×18.9 inches Carton Gross Weight BR: 12.9 kg (28.44 lbs) EU: 13.5 kg (29.76 lbs) UK: 13.6 kg (29.98 lbs) US: 13.1 kg (28.88 lbs) ZH: 12.8 kg (28.22 lbs) Carton Net Weight BR: 11.8 kg (26.01 lbs) EU: 12.3 kg (27.12 lbs) UK: 12.5 kg (27.56 lbs) US: 12.3 kg (27.12 lbs) ZH: 11.8 kg (26.01 lbs)
